BLITZFALL
Anti-UAV Gun System
Autonomous anti-UAV gun system based on twin 30×211 mm autocannon. Effective engagement range: 4.7 km. AI-assisted target detection, classification and firing solution. Manual operator confirmation required prior to engagement.
Integrated Anti-UAV Gun System.
Current operational experience confirms that low-cost strike drones — including Lancet and Shahed-class UAVs — impose asymmetric costs on defenders relying exclusively on missile-based intercept. A single engagement using surface-to-air missiles requires expenditure several orders of magnitude above the value of the targeted asset.
Critical infrastructure, energy distribution nodes and rear-area defensive positions require a cost-effective, low-maintenance kinetic solution capable of high engagement rates. The Blitzfall system is based on a combat-proven 30 mm gun platform, enabling engagement of UAV targets at materially lower cost per kill than missile-based alternatives.
Detection · Classification · Engagement
The Blitzfall engagement cycle is executed autonomously from initial sensor contact through firing solution computation. A single manual confirmation step is required from the operator prior to weapons release.

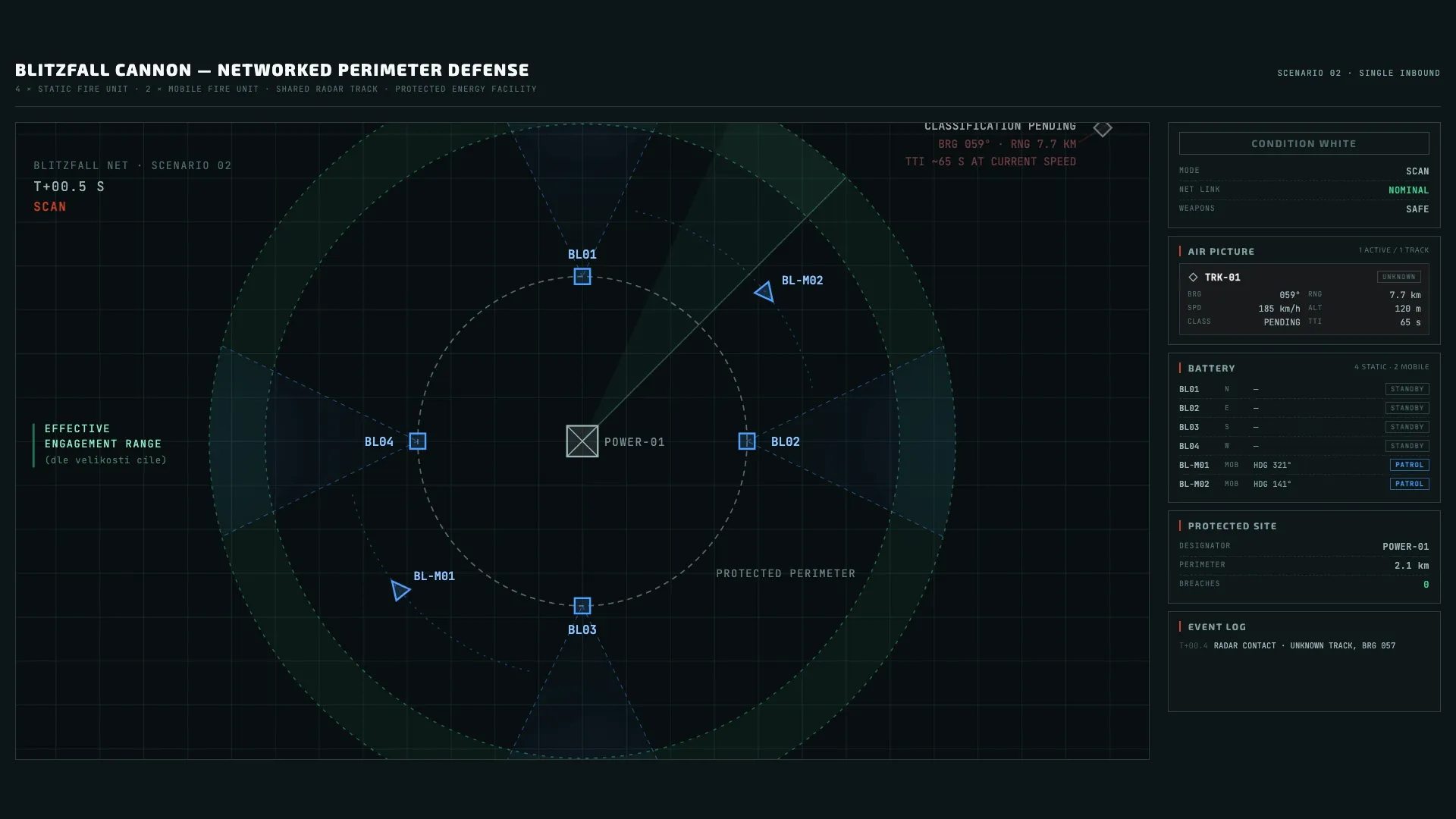

One Track. Every Gun.
A single Shahed-class UAV inbound on a protected energy facility. Four static BLITZFALL Cannon units and two mobile units share one radar track — every gun sees what the radar sees.
From first radar contact to weapons safe in under thirty seconds, with exactly one human decision in the loop: the operator authorizes the engagement. The battery does the rest.
- 00:01Radar contact — unknown track, bearing 057
- 00:03Track associated — TRK-01 inbound
- 00:06Classified — Shahed-238, hostile
- 00:08Battery slews — four units onto the track
- 00:10Lock — operator confirmation required
- 00:15Weapons release authorized — BL01 and BL02 fire 30×211 mm bursts
- 00:19Splash — TRK-01 neutralized outside the perimeter
- 00:21Damage assessment — no debris inside the perimeter
- 00:23Weapons safe — battery to standby, scan resumed
Scalable Deployment Architecture.

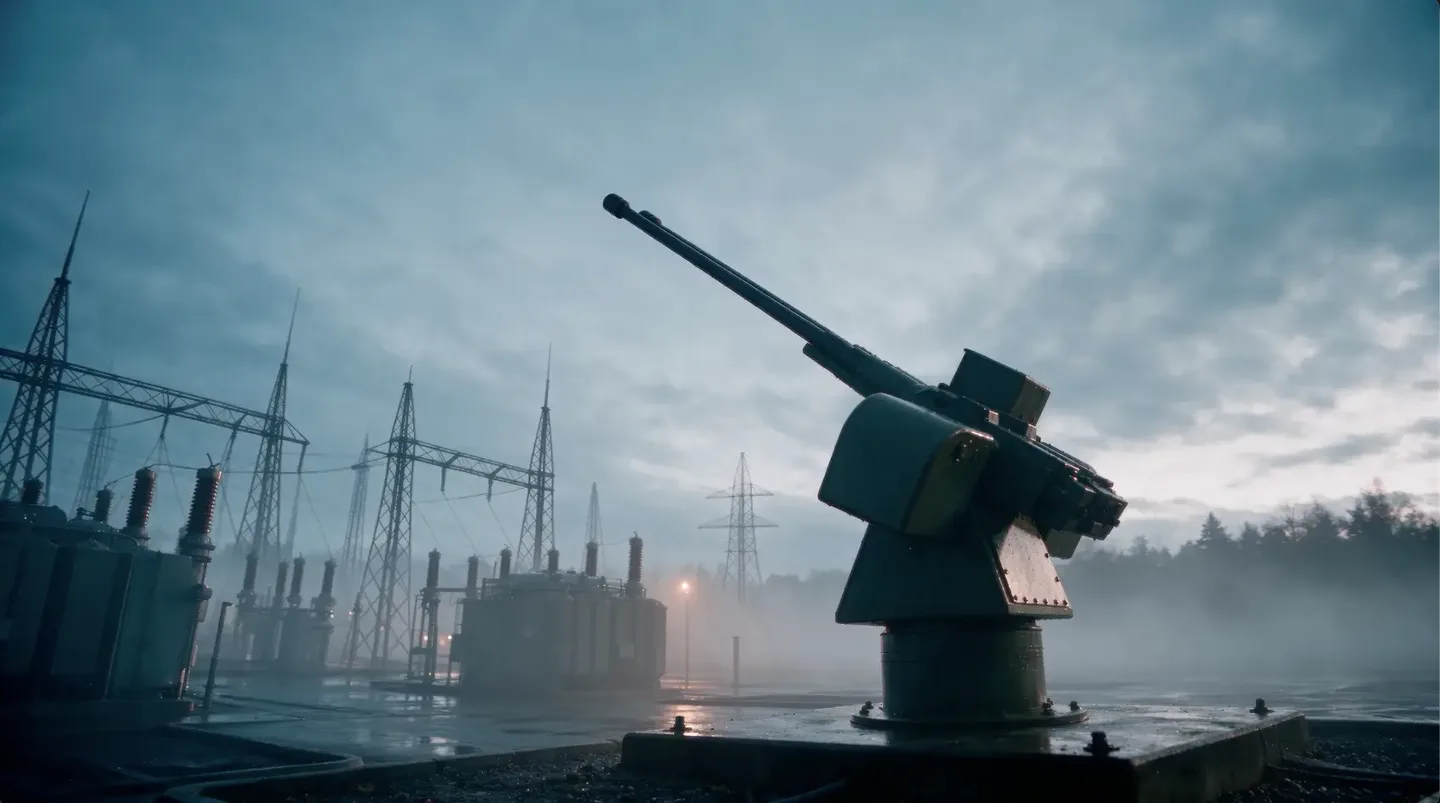

The Blitzfall platform is configurable from a single autonomous station to a multi-unit networked defense installation. Turret assembly is compatible with wheeled, tracked and amphibious carrier platforms.
Standalone Station
Single Blitzfall unit operating independently. Sector surveillance, AI-assisted classification and autonomous engagement. No external radar dependency.
Networked Perimeter Defense
Multiple units sharing a common 4D radar track. Overlapping coverage arcs provide 360° protection around critical infrastructure — substations, energy plants, command nodes.

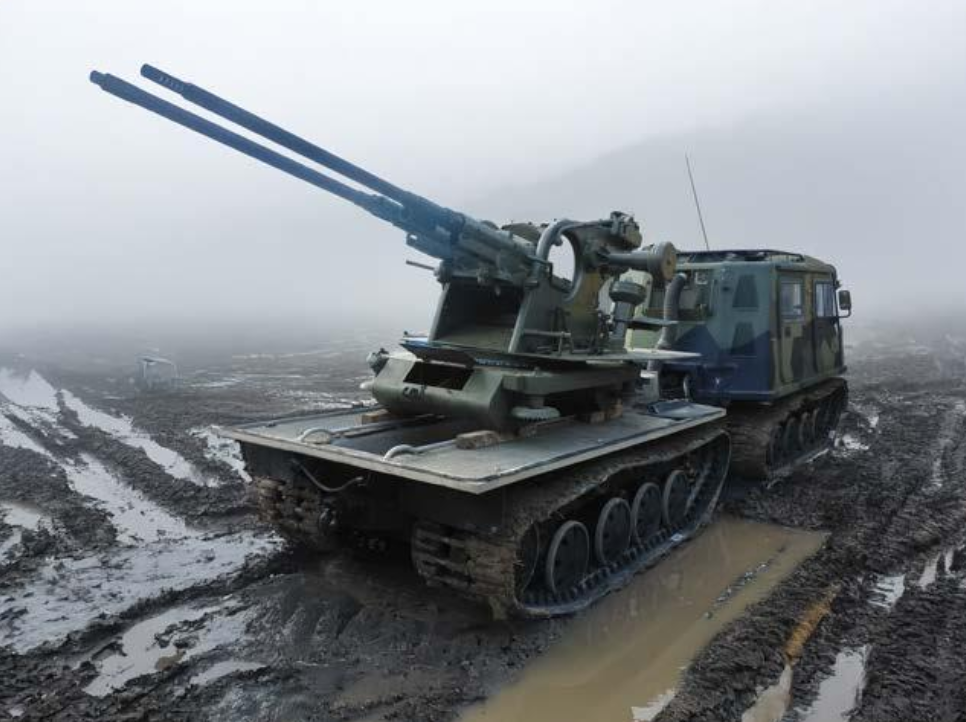

Mobile Platform
Turret assembly mounts on wheeled, tracked or amphibious carrier chassis. Enables repositioning of coverage in response to evolving front-line conditions.
Principal System Components.
Range: Up to 4.7 km
Targets: UAVs, missiles, low-flying aircraft
Loading: Belt-fed, dual-side
Range: Up to 10 km (C-UAS)
FOV: 130° Az × 90° El
Tracks: Hundreds simultaneous
Update rate: 10 Hz
Accuracy: < 0.5° Az/El
Day camera: CMOS 3840×2160, 10× optical zoom
Detection: 10 km* / 21 km**
Rated: −32°C to +55°C, IP67, MIL-STD
* cross-section 0.8 m (Shahed 136) · ** 2.3 m (NATO target)
Range: Up to 3 km
Hit logic: Detonates at set altitude
Cost: Low per round
Key Performance Advantages.
Minimal Crew Requirement
All targeting, range computation and ballistic calculation is performed autonomously. Operator tasks are confined to authorization and ammunition resupply.
Low Cost Per Engagement
Programmable 30×211 mm ammunition enables neutralization with a limited burst per target. Estimated cost per engagement approximately 1,000 EUR.
High Engagement Accuracy
Fuse is set to detonate at a defined altitude in proximity to the target. Effective against fast-moving and low-signature UAVs within 3 km.
Multi-Unit Coordination
Units within a common installation share a single radar track. Engagement is coordinated to prevent duplication and ensure full perimeter coverage.
Personnel Protection
System operates without personnel in the engagement zone. Operator station may be located at a safe remove from the defended position.
Continuous Operational Readiness
System maintains uninterrupted sector coverage. No shift rotation required. Response time from detection to engagement authorization is consistent regardless of duration of deployment.
European Industrial Base
All principal components — gun system, radar, optics and ammunition — are produced within the European Union: Czech Republic, Slovakia, Austria and France.
Gun platform based on the PLDvK 30×211 mm design. Production is being revived and modernized to meet current threat parameters and EU ammunition standards.
The system eliminates dependency on non-European supply chains for critical air-defense components, in accordance with EU defense autonomy objectives.
